High-Speed Steel

In the realm of advanced manufacturing, the demand for materials that offer exceptional durability, precision, and performance is ever-increasing. Toolman Special Steels, a distinguished name in the steel industry, proudly presents its range of High-Speed Steels (HSS)—engineered to meet the rigorous requirements of modern tooling applications.

Understanding High-Speed Steel

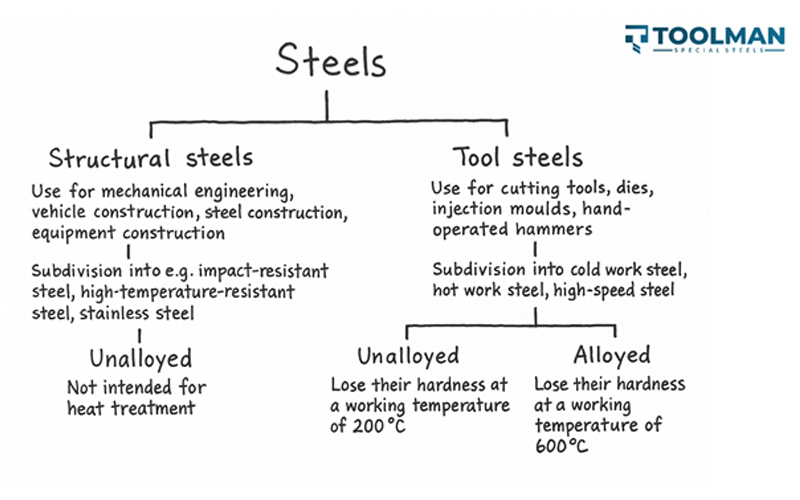

High-Speed Steel is a subset of Tool Steels, renowned for its ability to retain hardness at elevated temperatures, a property known as "red hardness." This characteristic makes HSS ideal for cutting tools that operate at high speeds and temperatures

Key Properties of High-Speed Steel

  • Red Hardness: Maintains cutting efficiency at temperatures up to 593°C (1100°F).
  • High Wear Resistance: Ensures prolonged tool life under abrasive conditions.
  • Superior Toughness: Reduces the risk of chipping and breakage during heavy-duty operations.
  • Good Grindability: Facilitates precision finishing and sharpening of tools.
Chemical Composition

Chemical Composition

High-Speed Steels are alloyed with elements such as tungsten, molybdenum, chromium, vanadium, and cobalt. These elements contribute to the steel's hardness, wear resistance, and ability to withstand high temperatures.

High-Speed Steel Grades by Toolman Special Steels

M2 High-Speed Steel (DIN 1.3343)

  • Overview: A general-purpose molybdenum-based HSS known for its balanced toughness and wear resistance.
  • Applications: Ideal for drills, taps, end mills, and broaches.

M3 High-Speed Steel (DIN 1.3344)

  • Overview: Offers enhanced wear resistance over M2 due to higher vanadium content.
  • Applications: Suitable for complex cutting tools, reamers, and form tools.

M7 High-Speed Steel (DIN 1.3348)

  • Overview: Provides superior toughness, making it excellent for shock-resistant tools.
  • Applications: Used in heavy-duty drills, punches, and chisels.

M35 High-Speed Steel (DIN 1.3243)

  • Overview: A cobalt-alloyed grade offering improved red hardness and wear resistance.
  • Applications: High-performance drills, taps, and saw blades.

M42 High-Speed Steel (DIN 1.3247)

  • Overview: Premium-grade cobalt HSS with outstanding hot hardness and wear resistance.
  • Applications: Aerospace cutting tools and machining tough alloys.

ABC III High-Speed Steel (DIN 1.3333)

  • Overview: A proprietary grade designed for high hardness and long tool life.
  • Applications: High-load punches, broaches, and form cutters.

T1 High-Speed Steel (DIN 1.3355)

  • Overview: Tungsten-based HSS with excellent wear resistance and hot hardness.
  • Applications: Turning tools, form tools, and machine taps.

T4 High-Speed Steel (DIN 1.3255)

  • Overview: High-tungsten HSS with enhanced toughness and strength.
  • Applications: Cold work dies, lathe tools, and industrial cutters.

T15 High-Speed Steel (DIN 1.3202)

  • Overview: Premium-grade tungsten HSS with added cobalt for exceptional edge retention and red hardness.
  • Applications: Aerospace and medical machining, high-strength steels.

T42 High-Speed Steel (DIN 1.3207)

  • Overview: Cobalt-rich grade designed for ultra-high performance with wear resistance and toughness.
  • Applications: Advanced machining operations and die and mould industry.

Comparative Table of Toolman HSS Grades

Grade DIN Type Key Features Typical Applications
M2 1.3343 Molybdenum-based Balanced toughness and wear resistance Drills, taps, end mills
M3 1.3344 Molybdenum-based Enhanced wear resistance Complex cutting tools
M7 1.3348 Molybdenum-based Superior toughness Heavy-duty drills, punches
M35 1.3243 Cobalt-alloyed Improved red hardness High-performance drills
M42 1.3247 Cobalt-alloyed Outstanding hot hardness Aerospace cutting tools
ABC III 1.3333 Proprietary High hardness and tool life High-load punches
T1 1.3355 Tungsten-based Excellent wear resistance Turning tools
T4 1.3255 Tungsten-based Enhanced toughness and strength Cold work dies
T15 1.3202 Tungsten-based Exceptional edge retention Aerospace machining
T42 1.3207 Tungsten-based Ultra-high performance Advanced machining
Chemical Composition

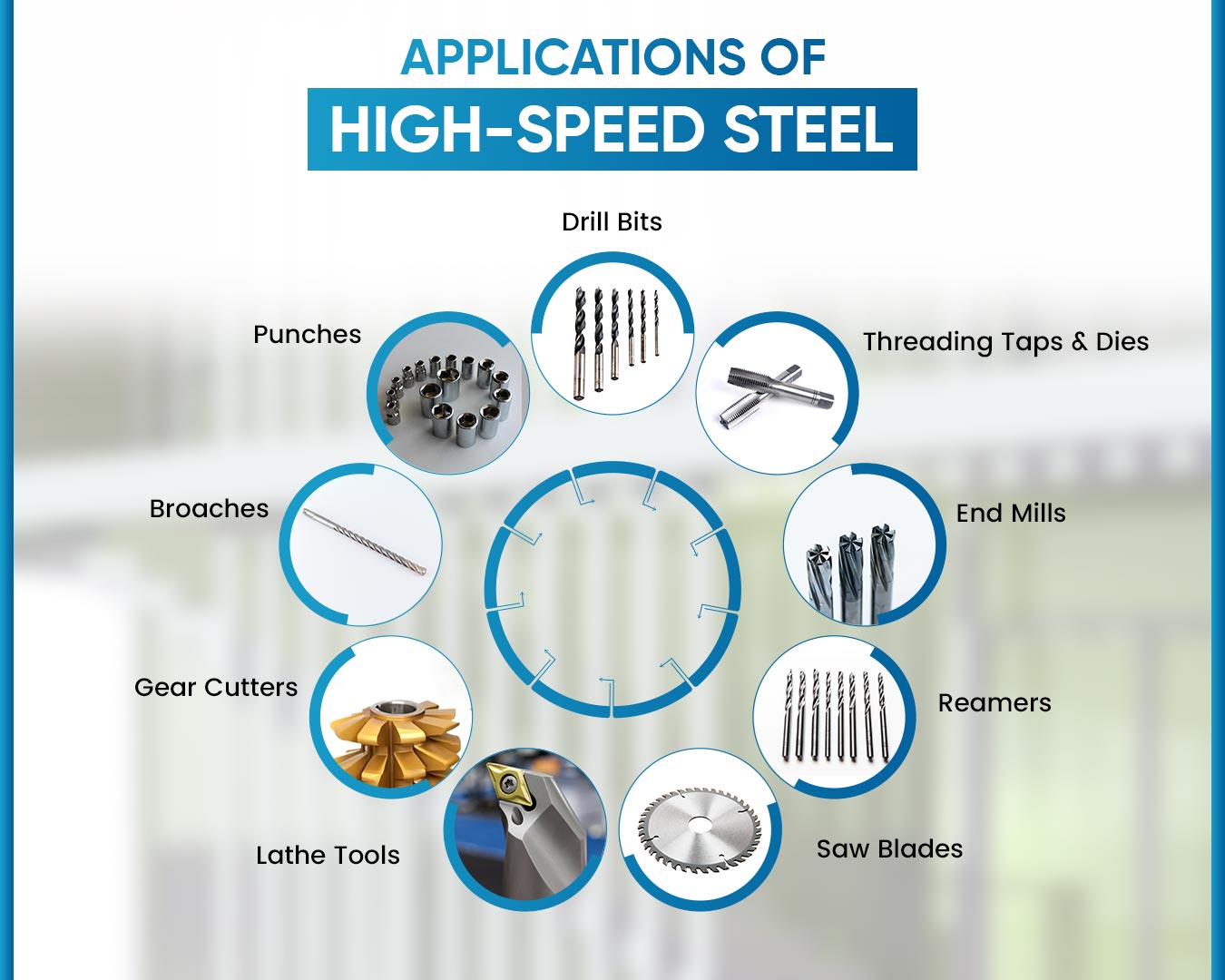

Applications of High-Speed Steel

Due to its exceptional properties, HSS is widely used in manufacturing:

  • Drill bits
  • End mills
  • Threading taps and dies
  • Reamers
  • Saw blades
  • Lathe tools
  • Gear cutters
  • Broaches
  • Punches

These tools are essential in industries such as aerospace, automotive, and heavy machinery, where precision and durability are critical.

Toolman Special Steels: Your Trusted HSS Partner

As a leading high-speed steel manufacturer, supplier, and exporter, Toolman Special Steels is committed to delivering materials that meet international standards. With a state-of-the-art manufacturing facility and a team of experienced professionals, Toolman ensures the production of high-quality HSS products tailored to your specific requirements.

For more information on our High-Speed Steel offerings, please visit our products page.

Ready to upgrade? Contact our team today for expert guidance and support.
